There are queer people in the world - a great many of them - and it is not strange that there are also queer houses. Now, as our little book is made for everybody, it is but just that queer people and their houses should be represented in it.
Very few persons, we presume, will desire to build a circular house, although it is the form, as geometry demonstrates, in which the greatest possible space may be inclosed by a given amount of wall ; but for the oddity of the thing, or because economy of space may be secured, somebody may wish to do it, and look for a design to adopt or imitate. Here it is!
This circular house, in many respects quite original in its plan, was erected by Enoch Robinson, Esq., at Spring Hill, Somerville, Massachusetts. No timber was used in its construction. The walls are made of plank sawed on a circle of 40 feet (the diameter of the house), nailed together, one above the other, in regular courses. The windows are made of four large panes of glass, in a single sash, which slides up into the wall, entirely out of the way. The inside blinds are arranged in the same manner.

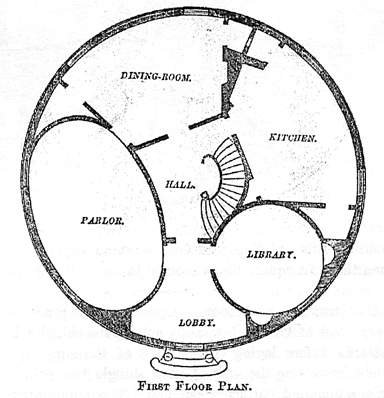

The oval parlor is 24 feet long by 15 feet wide. The circular library, opposite, is 13 feet in diameter, leaving a fine front entry between these two curves. The kitchen, next the circular library, has a slate floor and walls of varnished white-wood. Between the kitchen and the large dining-room is the chimney and the kitchen and dining-room closets, so arranged as to occupy very little room.

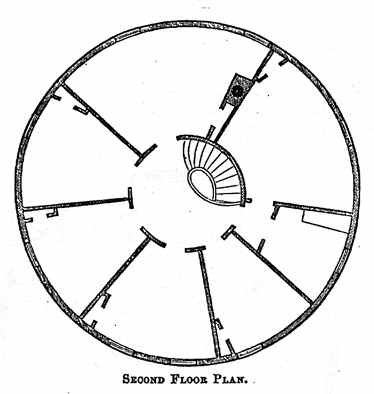

On the second floor are seven chambers, two of them quite large, all opening into a pleasant rotunda, 13 feet in diameter, beneath the central skylight.

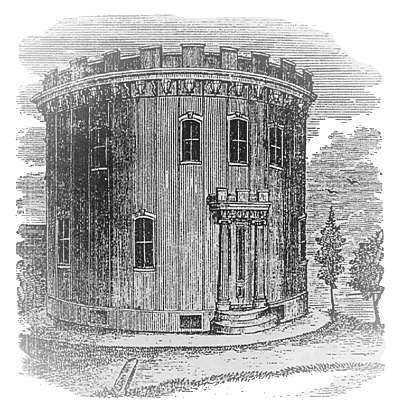

The accompanying sketch and plans will give a good idea of the general appearance and arrangement of this truly original and unique edifice.
Though made of the best materials, and of superior workmanship, this building was erected at an expense much less than that of a square house erected in the ordinary way.
