A Semi-Swiss Ornee Dwelling, 1871.

One of many house plans from the book

Atwood's Country and Suburban Houses.

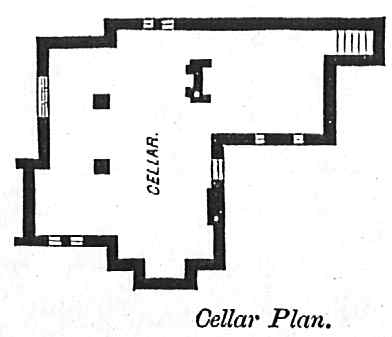

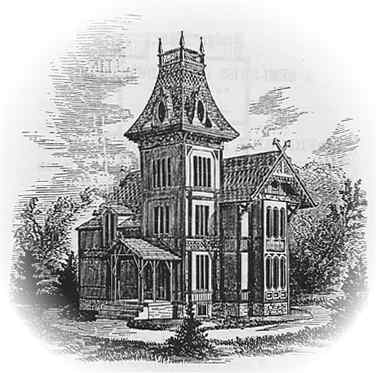

[Above] is a perspective view, and [following] are plans of a "A Swiss Ornee" Frame Dwelling, built for the Rev. F. F. Ellinwood, at Orange, N. J. Its location is near the Valley Station of the Morris & Essex R. R., on a fine westerly slope opposite the Orange mountain range, and in the immediate vicinity of extensive suburban improvements projected and carried on by the energy an enterprise of a resident of Orange, J. S. Otis.

The external details of the dwelling, though not clearly indicated in the view, are quite ornate in character, and as a whole add largely to the embellishments and improvements of the neighborhood.

The dwelling contains fourteen rooms.

The main building is 17 x 36 feet with a dormer lean-to, 9 feet 6 inches wide, which covers the study and a part of the hall. The extension on the opposite side is 16 x 18 feet. The tower, which is a prominent and useful feature, is 12 x 12 and 44 feet high, and located to cover a portion of the hall and command an extensive view of the Orange mountain, "Llewellyn Park," and portions of the upper and lower valley. The stories are respectively 10, 9, and 8 feet. The stories of the tower are 9 feet high each, above the first, which is 10 feet.

REFERENCES.

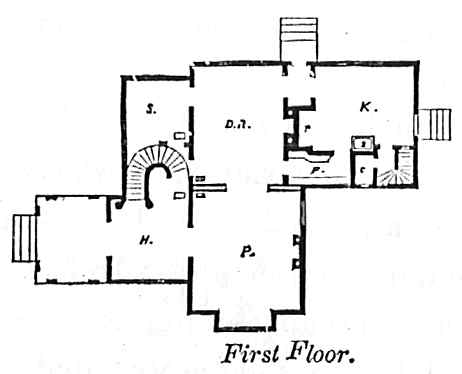

H, Hall, 11x19 feet
P, Parlor, 16x17 feet
D. R, Dining Room, 13x16 feet
K, Kitchen, 12x14 feet
P, Pantry, 5x9 feet
C, Store Closet, 3½x5 feet

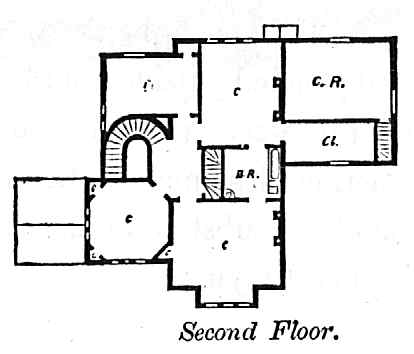

C, C, C, C, Sleeping Rooms, 13x15, 11x11, 9x13, and 12x14 feet respectively.
B. R, Bath Room, 8x9 feet
C. R, Children's Room, 12x15 feet
C. L, Large Closet, 5½x12 feet

ATTIC.

The attic contains three rooms, about 10 x 12 feet, and a tower-loft, 10 x 10 feet.




ATWOOD'S
COUNTRY AND SUBURBAN
HOUSES.

ILLUSTRATED WITH ABOUT 150 ENGRAVINGS.

BY
DANIEL T. ATWOOD,
ARCHITECT.

Originally published in New York, 1871, by Orange, Judd & Company.
eBook PDF, 2004, Merrymeeting Archives, LLC. 11.7MB, 82 e-pages.
This title is listed in Bicknell's 1879 Specimen Book.

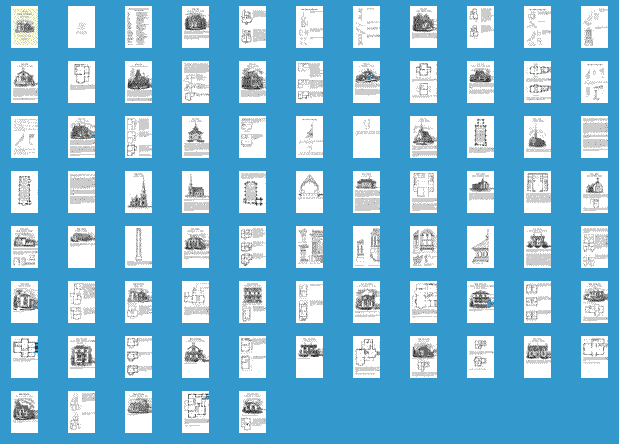

Plans, renderings and details for 33 designs, including semi-Swiss ornee dwelling, workingman's cottage, symmetrical cottage, sea side cottage, Italian villa, small suburban stable, a farm barn, mechanic's cottage, country church, double cottage in rural Gothic style, country gentleman's stable, bowling alley, suburban dwelling of stone, etc.
